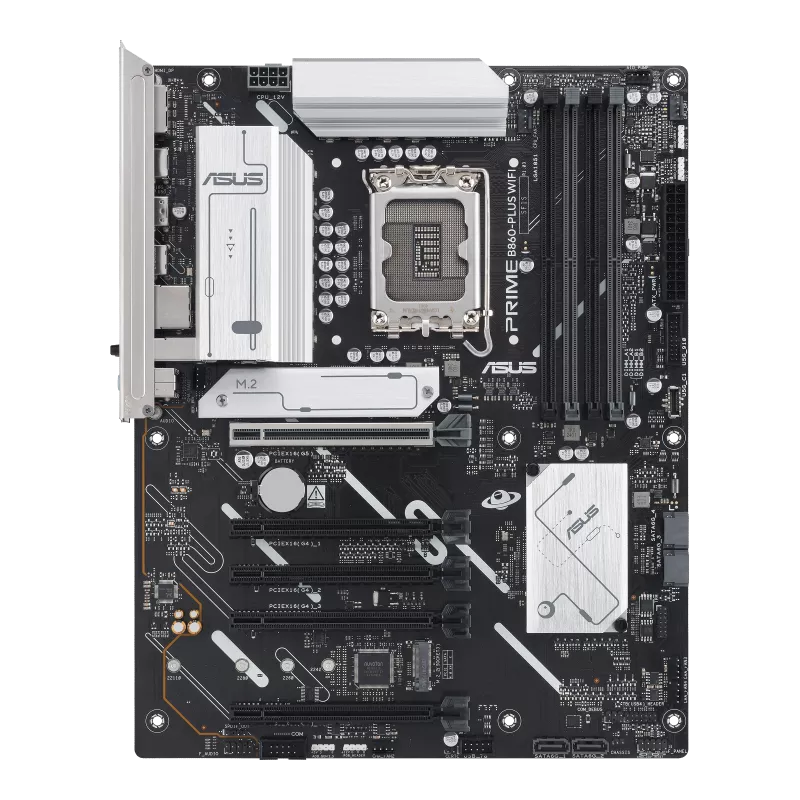

PRIME B860 WIFI Motherboard – DDR5, PCIe 5.0, Wi‑Fi 6E

The ASUS PRIME B860 WIFI motherboard provides a high-performance foundation for gaming and productivity PCs. With support for Intel LGA 1851 processors, DDR5 memory, PCIe 5.0, and built-in Wi‑Fi 6E, this motherboard delivers the speed, reliability, and flexibility modern users demand. Whether gaming, streaming, or multitasking, the PRIME B860 WIFI ensures smooth and consistent performance.

Key Features & Specifications

• Intel B860 chipset with LGA 1851 socket supporting Intel Core Ultra Series 2 CPUs

• DDR5 memory support: 4 DIMM slots, dual-channel, up to 256 GB, OC speeds up to 8666+ MT/s

• Expansion: 1 × PCIe 5.0 x16 slot for GPUs, plus additional PCIe 4.0 slots for add-on cards

• Storage: 2 × M.2 slots (1× PCIe 5.0 x4, 1× PCIe 4.0 x4) and 4 × SATA 6Gb/s ports, RAID 0/1/5/10 supported

• Connectivity: Wi‑Fi 6E, Bluetooth 5.3, Realtek 2.5 Gb Ethernet

• Rear I/O: USB‑C (20 Gbps), multiple USB 10Gbps/5Gbps ports, HDMI 2.1, DisplayPort 1.4, Realtek 7.1 HD audio

• Power & build: Robust VRM power stages, quality components, and optimized thermal design

Gaming Performance

With DDR5 memory and PCIe 5.0 bandwidth, the PRIME B860 WIFI reduces game load times and ensures smooth frame delivery for modern GPUs. NVMe storage and high-speed RAM minimize bottlenecks, while Wi‑Fi 6E and 2.5 Gb Ethernet provide low-latency online gaming, even on busy networks. Gamers experience stable performance across competitive shooters, RPGs, and open-world titles.

Why Choose This Product

The PRIME B860 WIFI is future-proof with DDR5 and PCIe 5.0 support for upcoming CPUs, GPUs, and storage solutions. Its ATX form factor provides full connectivity options, while robust VRMs ensure stable power delivery during long gaming or creative sessions. Additionally, built-in Wi‑Fi and Bluetooth simplify networking without extra hardware.

Compatibility & Requirements

Supports Intel LGA 1851 socket CPUs, DDR5 (non-ECC, unbuffered) memory, and ATX-compatible cases. Standard PSU with 24-pin ATX and 8-pin CPU connectors recommended. Supports NVMe M.2 SSDs and discrete GPUs for high-performance builds.

Internal link suggestions:

• Pair with our Gaming Motherboards collection

• Browse compatible DDR5 RAM Kits

• Check out our ATX PC Cases

PRODUCT SPECIFICATIONS:

• Chipset: Intel B860

• CPU Socket: LGA 1851 (Intel Core Ultra Series 2)

• Memory: 4 × DDR5 DIMM slots, dual-channel, up to 256 GB, up to 8666+ MT/s (OC)

• Expansion Slots: 1 × PCIe 5.0 x16, additional PCIe 4.0 slots

• Storage: 2 × M.2 slots (PCIe 5.0 & 4.0), 4 × SATA 6Gb/s ports, RAID 0/1/5/10

• Networking: Wi‑Fi 6E, Bluetooth 5.3, Realtek 2.5 Gb Ethernet

• I/O Ports: USB‑C 20 Gbps, USB 10Gbps/5Gbps, HDMI 2.1, DisplayPort 1.4, Realtek 7.1 HD Audio

• Audio: Realtek 7.1 HD Audio Codec, S/PDIF support

• Form Factor: ATX (305 × 244 mm)

• Power Delivery: 8+1+1+1 80A DrMOS power stages

• Warranty: 1–2 years (region-dependent)

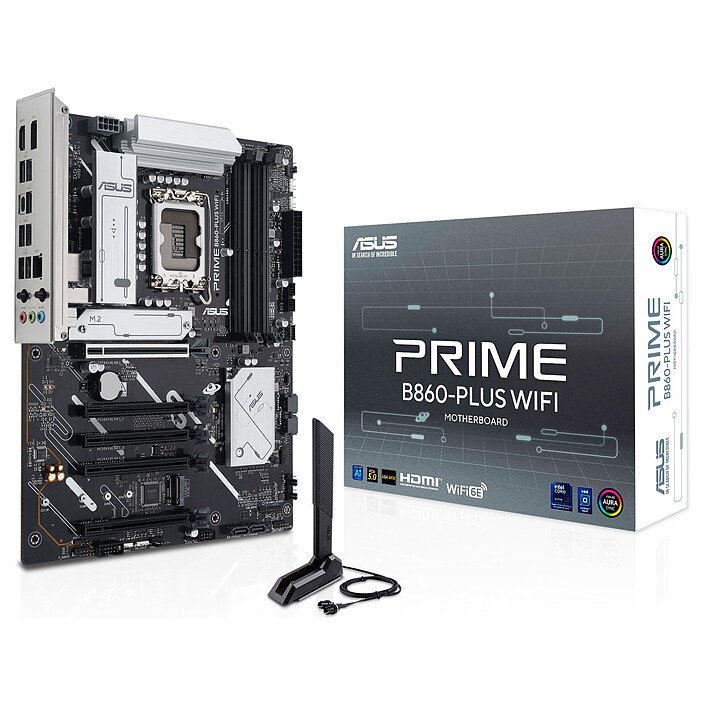

• Package Contents: Motherboard, I/O shield, Wi‑Fi antenna, SATA cables, M.2 screws, quick start guide/manual

Which CPUs are supported by PRIME B860 WIFI?

Supports Intel LGA 1851 socket processors, including Intel Core Ultra Series 2 CPUs.

Does it support DDR5 memory and overclocking?

Yes, 4 DDR5 DIMM slots up to 256 GB, with OC speeds up to 8666+ MT/s.

Can I use NVMe SSDs and SATA drives together?

Yes, 2 M.2 slots and 4 SATA ports allow simultaneous use.

Does it include Wi-Fi and Ethernet?

Yes, built-in Wi‑Fi 6E, Bluetooth 5.3, and 2.5 Gb Ethernet.

Is it suitable for full-size gaming PC builds?

Yes, ATX form factor (305 × 244 mm) supports full-sized gaming and workstation builds.
